Ignition Coil Failure: Symptoms, Testing and Replacement

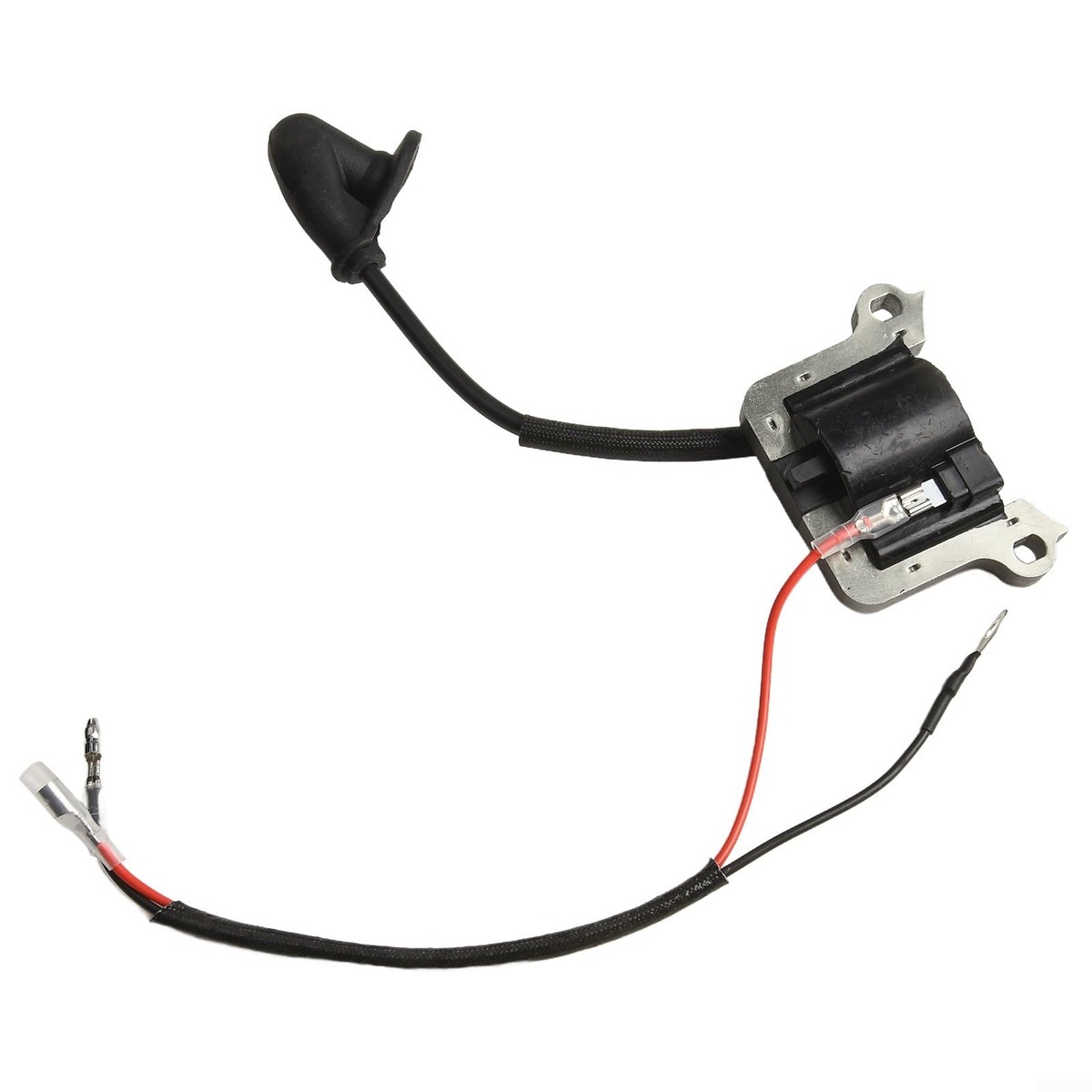

Ignition coil module for Chinese 43cc and 52cc CG430 CG520 engines from Pentales Ltd

The ignition coil is the part that turns the flywheel's rotation into the spark your plug needs. When it starts to fail, the symptoms are confusing — a machine that runs perfectly cold and dies twenty minutes in, or one that needs fifty pulls where it used to need three. Because coils rarely fail all at once, they get blamed last. This guide shows you how to spot the pattern, test the coil properly, and replace it in under half an hour.

The Classic Symptoms of a Failing Coil

Watch for these patterns before anything else: the engine starts cold but cuts out once hot and refuses to restart until it cools; the spark is weak and orange rather than crisp and blue; the machine loses power under load as it warms up; or starting gets steadily harder over weeks rather than failing overnight. Heat is the enemy — a coil with an internal break often works until under-hood temperatures rise, which is why the fault vanishes on the workshop bench and returns in the field.

Rule Out the Cheap Things First

Before condemning the coil, fit a fresh spark plug — a worn plug mimics a weak coil exactly. Then check the kill-switch wire: unplug it at the coil and retest for spark. If spark returns with the wire off, the switch or wiring is earthing the ignition, which is a common fault in Mauritius where salt air corrodes the switch contacts. Only if both are clean should you suspect the coil itself.

Testing the Coil

The quick test is a spark tester or a known-good plug earthed against the cylinder head: pull the rope and look for a strong, regular blue spark. For a definitive check, use a multimeter. Measure primary resistance across the coil's low-tension terminals and secondary resistance between the plug cap and the laminations, and compare against the specification for your machine — an open circuit or a reading far outside range confirms the fault. Also inspect the flywheel magnets for rust or debris, which can weaken spark without any coil fault at all.

Replacement and the Air Gap

Replacement is two bolts, one kill-wire connector and the plug lead. The only critical step is the air gap between the coil legs and the flywheel: too wide and the spark is weak, too close and the coil can foul the flywheel. The workshop trick works perfectly — loosen the coil, place a standard business card (about 0.3 mm) between the coil and flywheel, let the magnets pull the coil down onto the card, tighten the bolts, then remove the card and rotate the flywheel by hand to confirm nothing touches.

Matching the Right Coil

Coils are machine-family specific. The FS120–FS400 brush cutter family shares one, the MS171/MS181/MS211 chainsaws another, the BG56/BG86/SH56/SH86 blowers their own, and Honda GX stationary engines use their own pattern again. Chinese 43cc and 52cc engines share a common coil across brands. Match by model number and you will not go wrong — every coil we stock lists exactly which machines it fits.
