How to Replace a Brush Cutter Carburetor: A Step-by-Step Guide

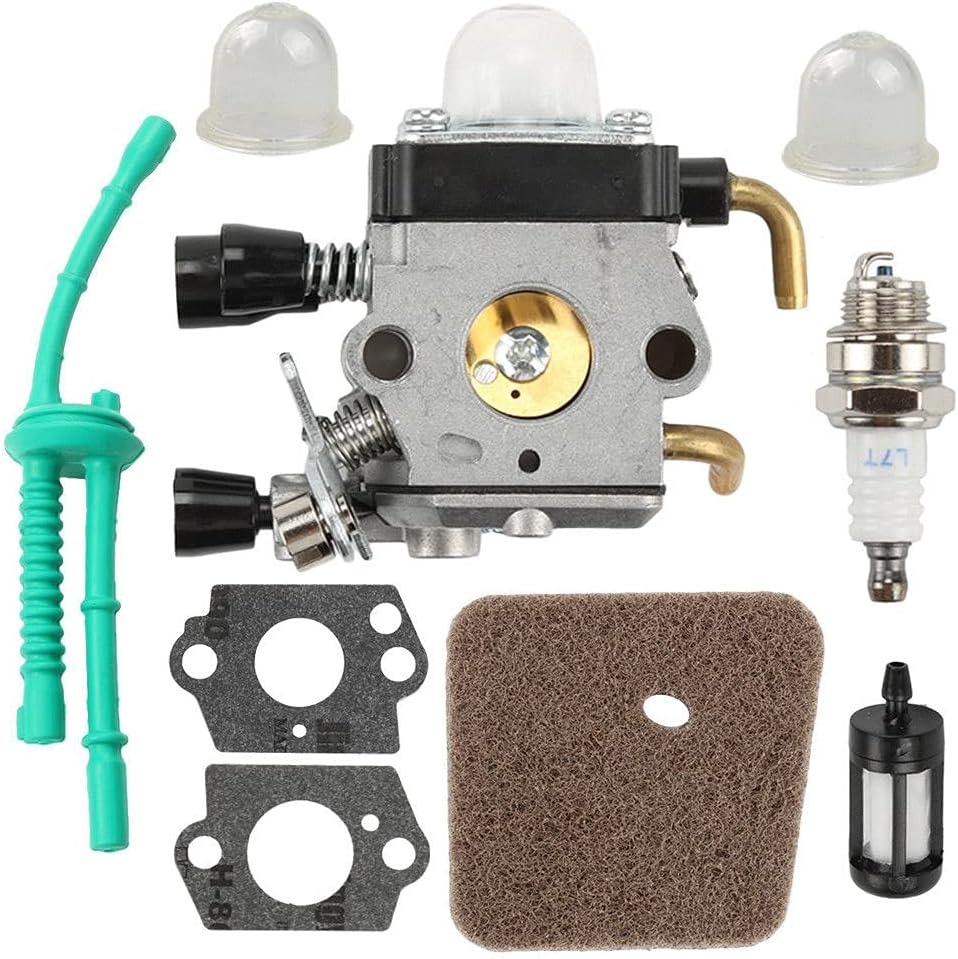

Carburetor rebuild kit with fuel line and filter for Stihl FS55 and FS38 from Pentales Ltd

Replacing a brush cutter carburetor is a 30-minute job with basic tools, and in most cases it is the fix for an engine that surges, stalls at idle, or refuses to run without the choke. In Mauritius, where fuel mix absorbs moisture quickly and machines sit between cutting rounds, carburetor faults are the single most common repair we see. This guide walks through the swap from start to first pull.

Signs the Carburetor Is the Problem

Replace or rebuild the carburetor when the engine starts only with the choke on, bogs when you open the throttle, surges up and down at idle, or floods and smells of raw fuel. If a new spark plug, fresh fuel and a clean air filter change nothing, the carburetor is almost always the culprit. Where the diaphragms are simply stiff, a rebuild kit is enough; where the body is worn or corroded, fit a complete unit.

Tools and Safety

You need a screwdriver set, a Torx or socket set matching your machine, needle-nose pliers for the linkage, and a clean tray for small parts. Work with the engine cold, the plug lead disconnected, and the tank as empty as you can manage. Photograph the linkage and hose routing before you disconnect anything — a phone photo saves guesswork on reassembly.

Removing the Old Carburetor

Remove the air filter cover and filter, then the filter base. Note which fuel line goes to which spigot — the feed line with the in-tank filter connects to the inlet, the shorter return line to the primer side. Slip off the throttle linkage, undo the two mounting nuts, and ease the carburetor off its studs. Keep the gaskets and any insulating spacer in order; their orientation matters.

Matching the Replacement

Match by the machine model first — an FS55-family carburetor differs from an FS120-family unit — and confirm by the carburetor's own marking where possible (Zama C1Q, Walbro WT and similar are stamped on the body). For Chinese 43cc and 52cc machines the pattern is shared across most CG430 and CG520 engines, which makes matching straightforward. If the old unit's marking is unreadable, bring the model number or a clear photo and we will confirm the fit before you order.

Fitting and First Start

Fit new gaskets — never reuse the old set — and seat the carburetor evenly on its studs. Reconnect the lines to the correct spigots, clip the throttle linkage back on, and refit the filter base. Prime until the bulb fills with fuel, set full choke, and pull. Most machines fire within two or three pulls; drop to half choke once it coughs, then to run.

Adjusting the Idle

Let the engine warm for a minute, then set the idle screw so the engine runs steadily without the head or blade turning. If the machine has mixture screws and runs rough after the swap, start from the baseline — typically one to one and a half turns out — and adjust in eighth-turn steps. Where a machine still will not tune cleanly, the fuel filter or a cracked line is usually undoing the new carburetor's work; a rebuild kit with lines and filter included settles the whole fuel path at once.
